/ Product catalogue / Domestic ventilation / Residental wall fans / Classic axial fans / Auto / Auto 150 IR| Unit of measurement | Auto 150 IR | |
| Minimum supply voltage | V | 220 |
| Maximum supply voltage | V | 240 |
| Power supply frequency | Hz | 50 |
| Maximum airflow | m³/h | 295 |
| Ingress protection rating | - | IP24 |
| Impeller material | - | Plastic |
| Trademark | Blauberg | |||||
| Model | Auto 150 IR | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| 32 | B | 15 | E | 6 | F | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Multi-speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 295 | |||||
| Electric power input (W) | 26 | |||||
| Reference flow rate (m³/s) | 0.057 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.057 | |||||
| Control typology | Manual control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 59 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 100 | 100 | 100 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 3400 | 1700 | 800 | ||||

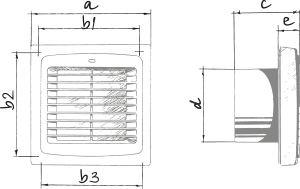

| a | b1 | b2 | b3 | c | ∅ d | e |
|---|---|---|---|---|---|---|
| 210 | 150 | 195 | 196 | 115 | 150 | 34 |
