/ Product catalogue / Commercial and industrial ventilation / Inline fans / For rectangular ducts / Box-FI / Box-FI 60x35 4D
| Unit of measurement | Box-FI 60x35 4D | |
| Phases | - | 3 |
| Minimum supply voltage | V | 400 |
| Maximum supply voltage | V | 400 |
| Power supply frequency | Hz | 50 |
| Weight | kg | 72 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -20 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP44 |
| Impeller material | - | Galvanized steel |
| Trademark | Blauberg |
| Model | Box-FI 60x35 4D |
| Type of drive installed | External MSD or VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 542 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 36.9 |
| Declared typology | NRVU UVU |
| Effective electric power input (kW) | 1.12 |
| Sound power level (dB(A)) | 72 |

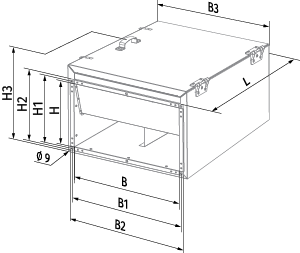

| B | B1 | B2 | B3 | H | H1 | H2 | H3 | L |
|---|---|---|---|---|---|---|---|---|
| 600 | 620 | 640 | 670 | 350 | 370 | 390 | 530 | 735 |
