| Unit of measurement | CDTE E1.5 TP | |
| Minimum supply voltage | V | 100 |
| Maximum supply voltage | V | 240 |
| Power supply frequency | Hz | 50/60 |
| Weight | kg | 0.46 |
| Ambient air temperature max | °С | 35 |
| Ambient air temperature min | °С | -20 |
| Ingress protection rating | - | IP54 |

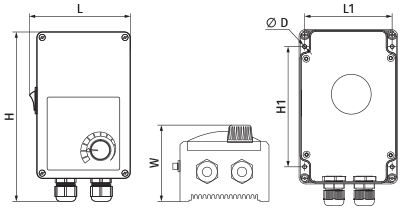

| H | L | W | L1 | H1 | ØD |
|---|---|---|---|---|---|
| 162 | 96 | 75 | 71 | 108,8 | 4,2 |
