| Unit of measurement | inWave EC 150/160 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Weight | kg | 5 |
| Transported air temperature (max) | °С | 55 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP44 |
| Impeller material | - | Plastic |
| Trademark | Blauberg | |||||
| Model | inWave EC 150/160 | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -54.3 | A+ | -27.3 | B | -11.8 | E | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Variable speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 320 | |||||
| Electric power input (W) | 39 | |||||
| Reference flow rate (m³/s) | 0.054 | |||||
| Reference pressure difference (Pa) | 50 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.077 | |||||
| Control typology | Local demand control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Sound power level (dB(A)) | 54 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 41 | 41 | 41 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 5536 | 2830 | 1280 | ||||

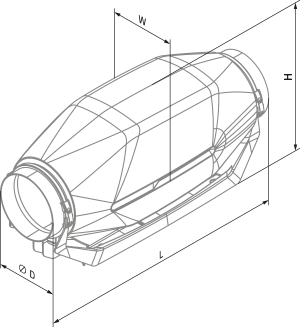

| Ø D | W | L | H |
|---|---|---|---|
| 149 (159) | 253 | 606 | 273 |
| Name | Photo | Description |
|---|---|---|

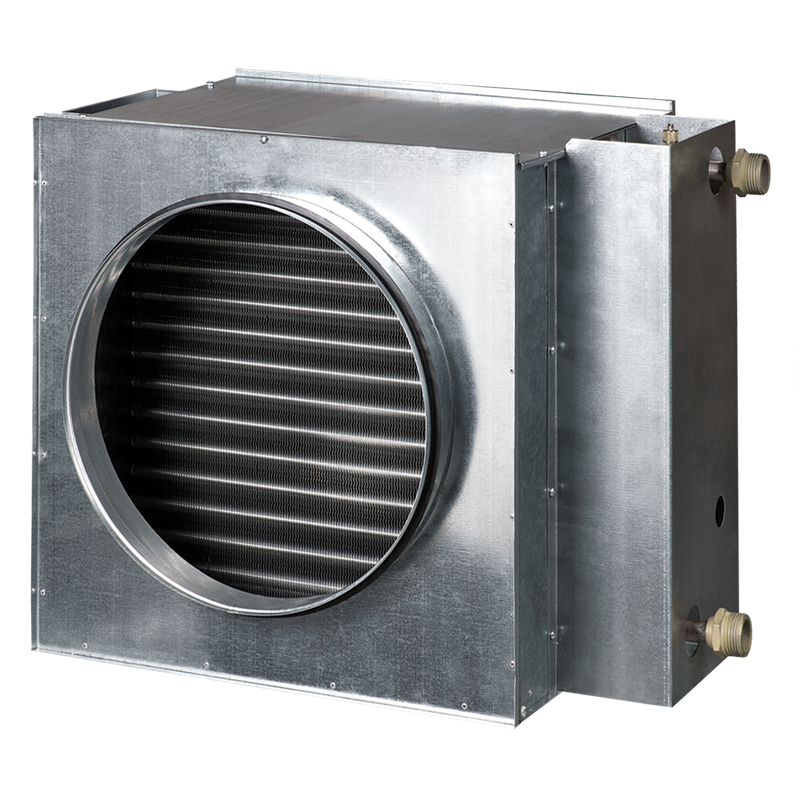

| Blauberg WKH 150-2 |
|
Duct water heaters for round ducts |
| Blauberg WKH 150-4 |
|
Duct water heaters for round ducts |
| Blauberg WKH 160-2 |
|
Duct water heaters for round ducts |
| Blauberg WKH 160-4 |
|
Duct water heaters for round ducts |
