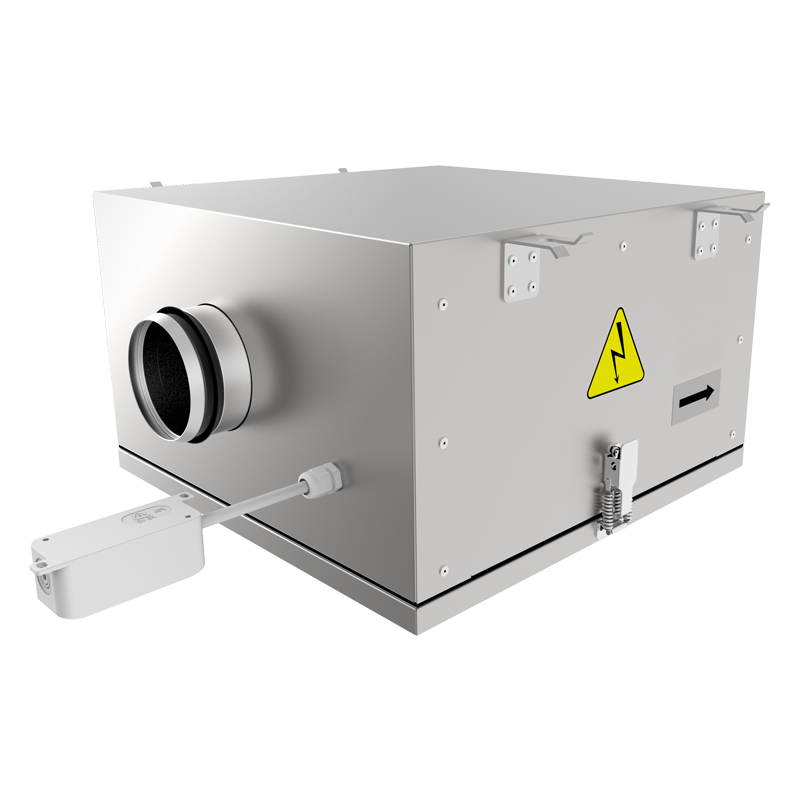

Blauberg Iso-RB 315 max

Centrifugal inline fans with backward curved blades in cases with improved sound insulation properties

	Unit of measurement	Iso-RB 315 max
Phases	-	3
Minimum supply voltage	V	400
Maximum supply voltage	V	400
Power supply frequency	Hz	50
Weight	kg	48
Transported air temperature (max)	°С	55
Transported air temperature (min)	°С	-25
Ingress protection rating	-	IPX4
Ingress protection rating of the drive	-	IP54
Impeller material	-	Galvanized steel

Trademark	Blauberg
Model	Iso-RB 315 max
Type of ventilation unit	Unidirectional
Type of drive installed	External MSD or VSD
Type of heat recovery system	None
Nominal external pressure (Pa)	972
Maximum external leakage rates (%)	2.7
Static efficiency (%)	49.5
Declared typology	NRVU UVU
Effective electric power input (kW)	0.612
Sound power level (dB(A))	68
