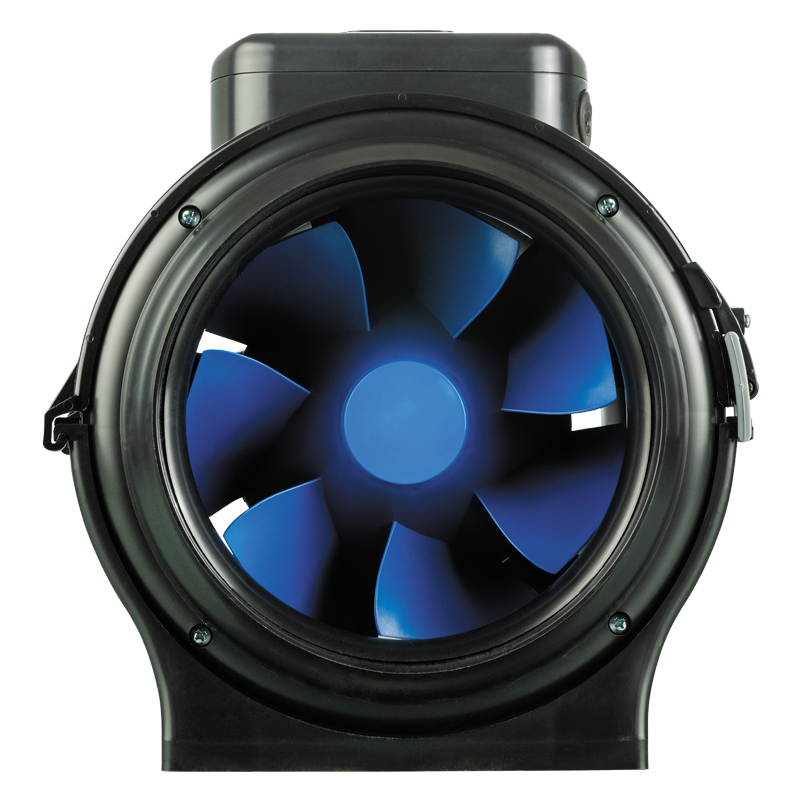

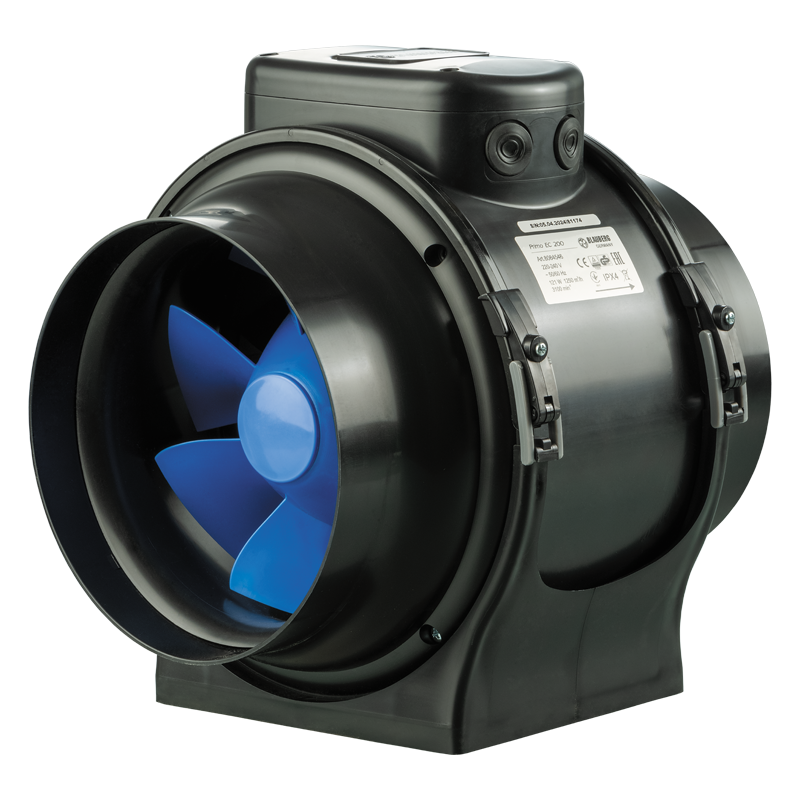

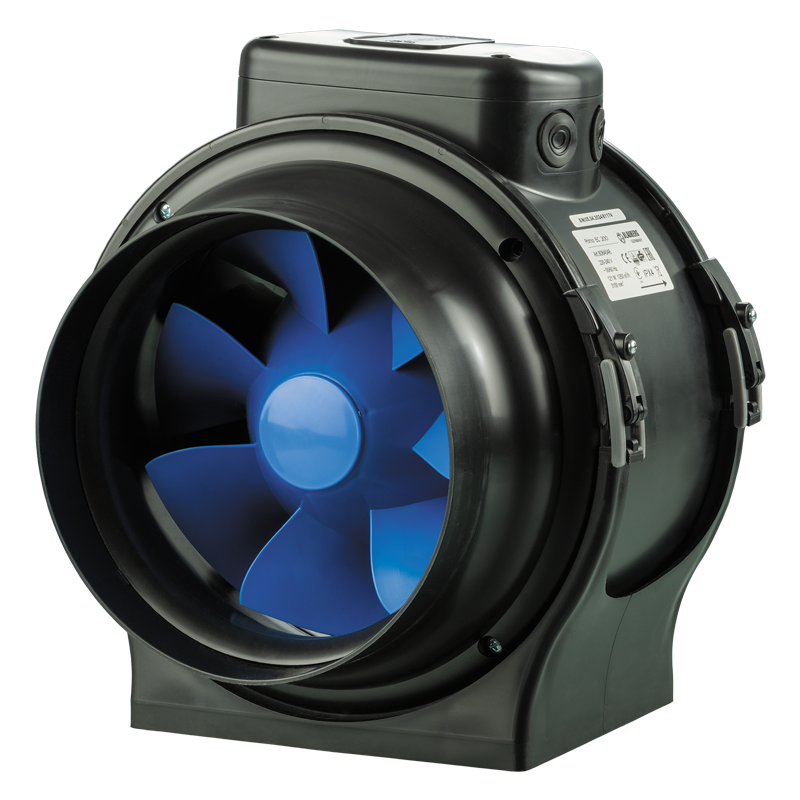

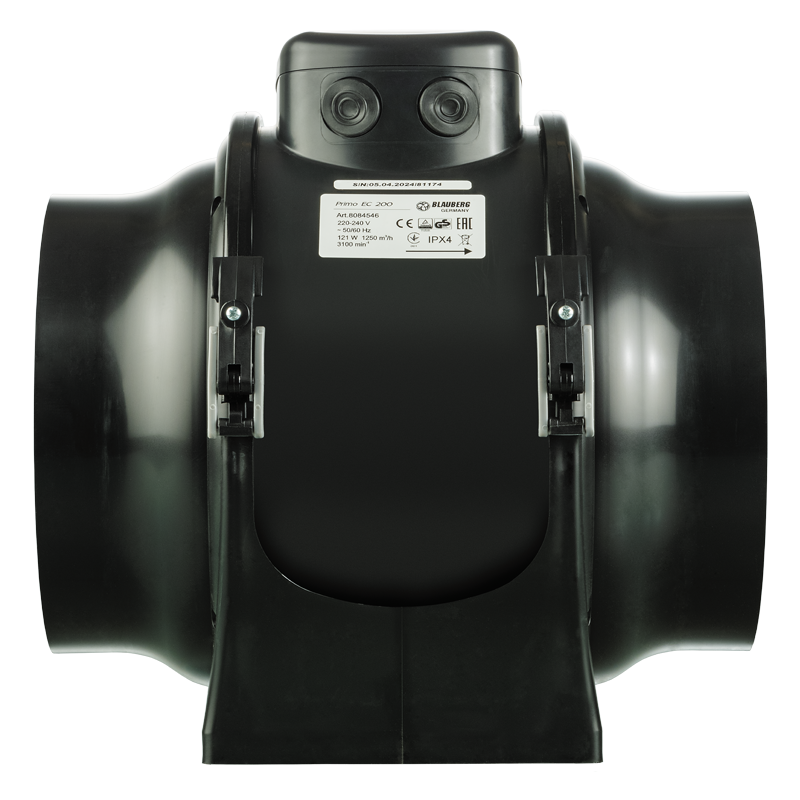

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Primo EC / Primo EC 200
| Unit of measurement | Primo EC 200 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Transported air temperature (max) | °С | 55 |
| Transported air temperature (min) | °С | -25 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP44 |
| Impeller material | - | Plastic |
| Trademark | Blauberg |
| Model | Primo EC 200 |
| Type of ventilation unit | Unidirectional |
| Type of drive installed | Integrated VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 241 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 43.2 |
| Declared typology | NRVU UVU |
| Effective electric power input (kW) | 0.12 |
| Sound power level (dB(A)) | 72 |

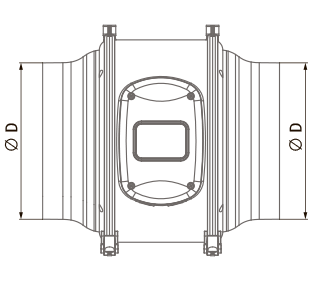

| A | B | C | Ø D |
|---|---|---|---|
| 308 | 302 | 293 | 200 |
