/ Product catalogue / Domestic ventilation / Residential inline fans / Inline Fans / Qubit-E 35/60 / Qubit-E 35/60 T| Unit of measurement | Qubit-E 35/60 T | ||
| Speed | - | 1 | 2 |
| Minimum supply voltage | V | 220 | |
| Maximum supply voltage | V | 240 | |
| Power supply frequency | Hz | 50 | |
| Ambient air temperature min | °С | 1 | |
| Ambient air temperature max | °С | 40 | |
| Ingress protection rating | - | IP45 | |
| Impeller material | - | Plastic |
| Trademark | Blauberg | |||||
| Model | Qubit-E 35/60 T | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| 60 | G | 77.9 | G | 88.1 | G | |
| Type of ventilation unit | Unidirectional | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 9 | |||||
| Electric power input (W) | 16.4 | |||||
| Reference flow rate (m³/s) | 0.001 | |||||
| Reference pressure difference (Pa) | 50 | |||||
| Specific power input (SPI) (W/(m³/h)) | 3.281 | |||||
| Control typology | Clock control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Sound power level (dB(A)) | 40 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 3865 | 3865 | 3865 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 3667 | 1874 | 848 | ||||
| Name | Photo | Description |
|---|---|---|

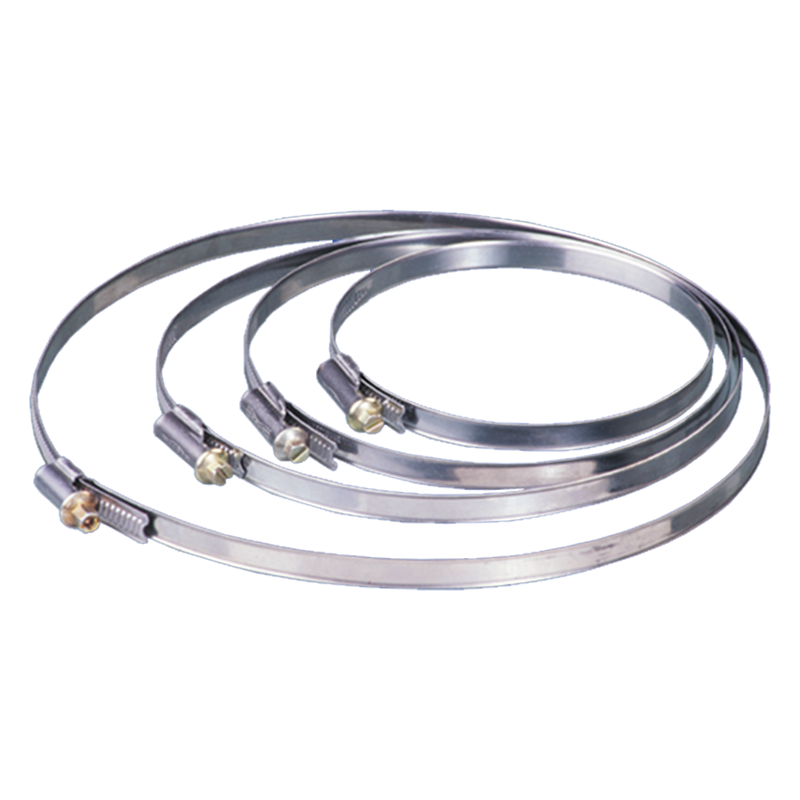

| Blauberg K 100 |
|
Clamp for round flexible ducts |
| Name | Photo | Description |
|---|---|---|

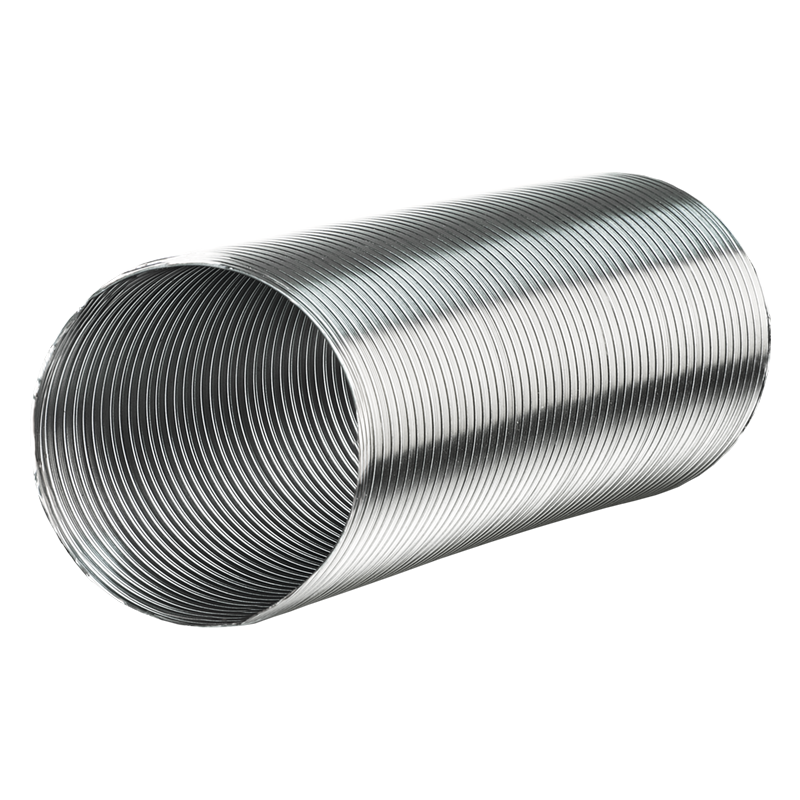

| Blauberg BlauFlex AN 100/3 |
|
Flexible air ducts BlauFlex |
