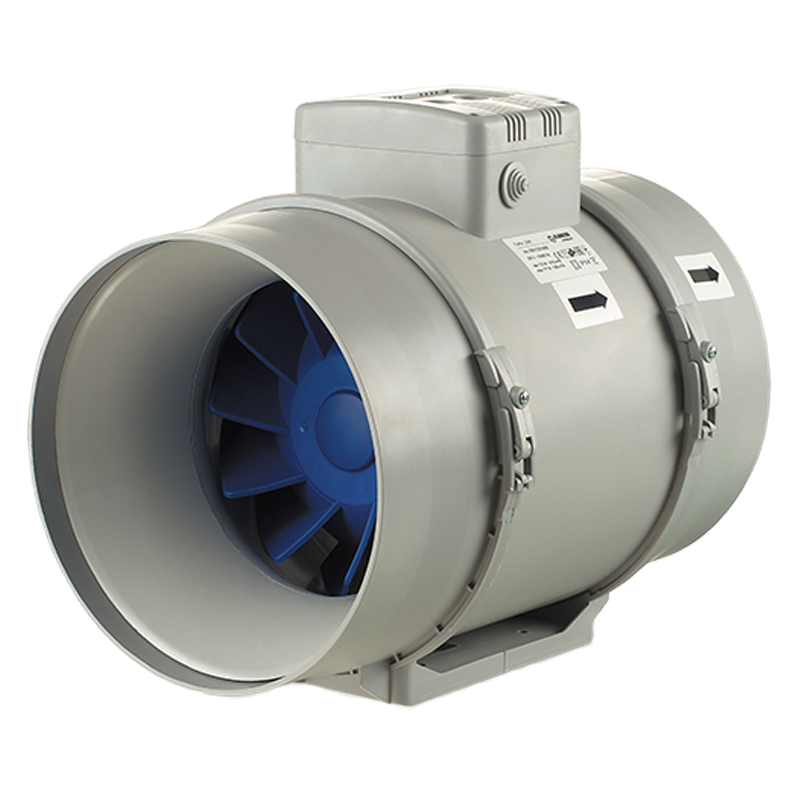

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Turbo / Turbo 250
| Unit of measurement | Turbo 250 | ||
| Speed | - | 1 | 2 |
| Phases | - | 1 | |
| Minimum supply voltage | V | 230 | |
| Maximum supply voltage | V | 230 | |
| Power supply frequency | Hz | 50/60 | |
| Weight | kg | 7.8 | |
| Transported air temperature (max) | °С | 60 | |
| Ingress protection rating | - | IPX4 | |
| Ingress protection rating of the drive | - | IPX4 | |
| Impeller material | - | Plastic |
| Trademark | Blauberg |
| Model | Turbo 250 |
| Type of ventilation unit | Unidirectional |
| Type of drive installed | External MSD or VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 247 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 31.5 |
| Effective electric power input (kW) | 0.165 |
| Sound power level (dB(A)) | 72 |
| Declared typology | NRVU UVU |
| Ø D | Ø D1 | B | H | L |
|---|---|---|---|---|
| 247 | 257 | 287 | 323 | 383 |
| Name | Photo | Description |
|---|---|---|
| Blauberg WKH 250-2 |
|
Duct water heaters for round ducts |
| Blauberg WKH 250-4 |
|
Duct water heaters for round ducts |
