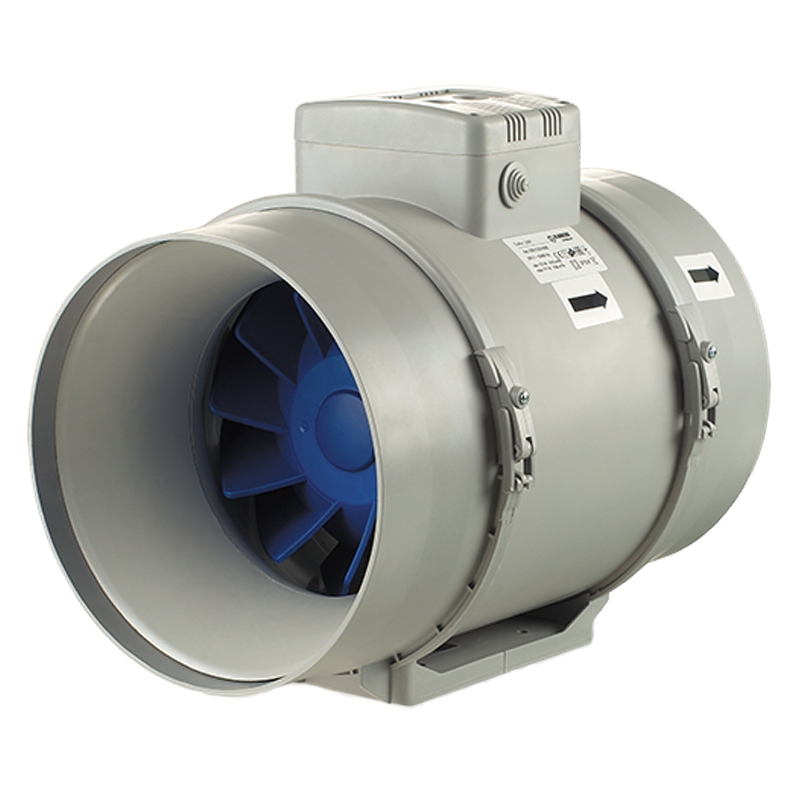

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Turbo EC / Turbo EC 250
| Unit of measurement | Turbo EC 250 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Maximum airflow | m³/h | 1285 |
| Weight | kg | 7.8 |
| Transported air temperature (max) | °С | 55 |
| Transported air temperature (min) | °С | -25 |
| Ingress protection rating | - | IPX4 |
| Impeller material | - | Plastic |
| Trademark | Blauberg |
| Model | Turbo EC 250 |
| Type of ventilation unit | Unidirectional |
| Type of drive installed | Integrated VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 234 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 34.8 |
| Declared typology | NRVU UVU |
| Effective electric power input (kW) | 0.169 |
| Sound power level (dB(A)) | 73 |
| ØD | B | H | L | ØD1 |
|---|---|---|---|---|
| 247 | 288 | 339 | 383 | 257 |
